Piling Bentonite for Deep Foundation and Diaphragm Wall Projects

The Importance of Piling Bentonite in Modern Construction

Bentonite plays a critical role in modern geotechnical and underground construction projects. In deep foundation systems, excavation stability and groundwater control are among the most important engineering challenges. For this reason, piling bentonite has become a standard material in bored pile drilling, diaphragm wall excavation, tunneling, and underground concrete structures.

Piling bentonite is primarily used to prepare slurry systems that stabilize excavation walls during drilling operations. Due to its high swelling capacity and thixotropic behavior, sodium bentonite forms a protective filter cake on the soil surface and helps maintain hydrostatic pressure inside the excavation area.

Today, contractors and civil engineering companies widely use construction grade bentonite in:

• Bore pile drilling
• Diaphragm wall construction
• Tunnel and TBM projects
• Retaining wall systems
• Foundation waterproofing
• Soil stabilization applications

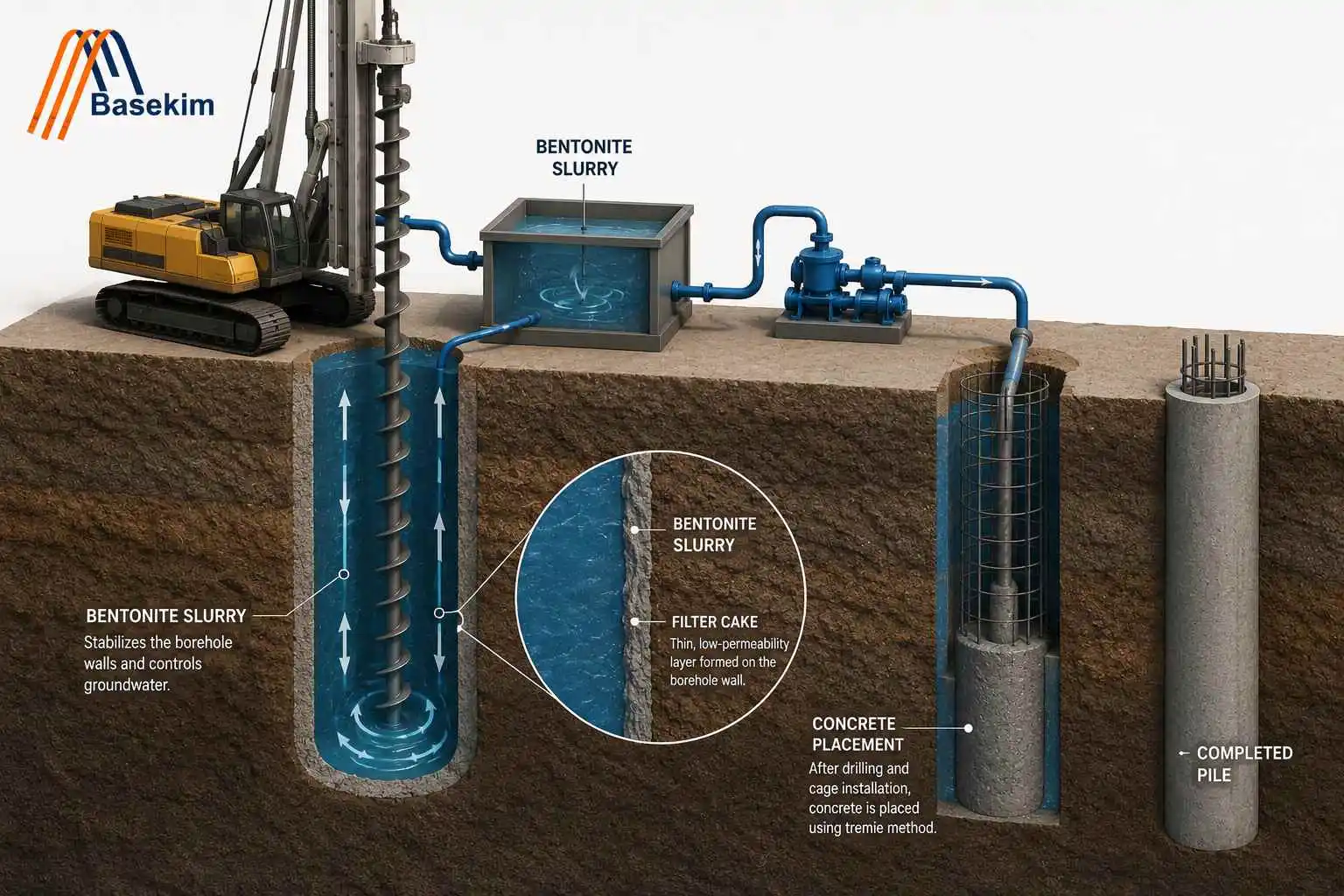

Bentonite Slurry in Bore Pile Drilling

One of the most common applications of piling bentonite is deep foundation and bored pile construction.

During pile drilling operations, unstable soil formations and groundwater pressure can cause borehole collapse. To prevent this issue, bentonite slurry is circulated inside the drilled shaft throughout the excavation process.

The slurry performs several important engineering functions:

• Stabilizes borehole walls
• Controls groundwater infiltration
• Creates hydrostatic support pressure
• Suspends drill cuttings
• Forms a low-permeability filter cake
• Improves drilling safety and stability

In most projects, sodium bentonite is mixed with water at approximately 4% to 7% concentration depending on soil conditions, drilling depth, and groundwater levels.

Loose sandy soils and high-water environments generally require higher slurry viscosity and stronger gel strength.

Construction Grade Bentonite for Diaphragm Wall Systems

Diaphragm wall construction requires continuous trench stability before concrete placement. In these projects, construction grade bentonite slurry is used to support trench walls during excavation.

The slurry counterbalances soil pressure and minimizes the risk of trench collapse until reinforcement cages and tremie concrete are installed.

Diaphragm wall systems are widely used in:

• High-rise building foundations
• Metro stations
• Underground parking structures
• Retaining walls
• Deep basement excavation projects

For these applications, contractors usually prefer sodium bentonite with high yield, controlled viscosity, and low fluid loss properties.

Why Sodium Bentonite Is Preferred in Piling Projects

Not all bentonite materials provide the same performance in construction applications.

Sodium Bentonite

Sodium bentonite is commonly used in piling and diaphragm wall projects because it offers:

• High swelling capacity
• Strong gel formation
• Excellent slurry stability
• Better filtration control
• Lower permeability
• Improved borehole support

Calcium Bentonite

Calcium bentonite generally has lower swelling performance and is more suitable for lower demand industrial applications rather than critical geotechnical operations.

For deep foundation construction, sodium bentonite remains the preferred industry standard.

Engineering Properties of Piling Bentonite

Civil engineering contractors and drilling companies usually evaluate piling bentonite based on technical slurry performance rather than only price.

Important parameters include:

API grade bentonite is commonly preferred in piling and diaphragm wall applications because it provides reliable slurry performance under difficult soil conditions.

Bentonite for Groundwater Control and Waterproofing

Construction grade bentonite is also widely used in underground waterproofing systems.

When exposed to water, sodium bentonite expands significantly and forms a dense impermeable barrier. This makes it highly effective for:

• Foundation waterproofing
• Basement sealing
• Tunnel lining systems
• Retaining walls
• Underground concrete structures

Bentonite-based waterproofing systems are commonly used together with GCL membranes and geotextile layers in modern construction projects.

Soil Stabilization Applications

In civil engineering and infrastructure projects, bentonite is also used to improve weak soil conditions.

By mixing bentonite into soil, engineers can:

• Reduce permeability
• Improve cohesion
• Control seepage
• Increase excavation stability

These applications are commonly found in:

• Road construction
• Canal lining
• Landfill engineering
• Dam projects
• Infrastructure development

Piling Bentonite Supplier in Turkey

Basekim supplies piling bentonite and construction grade bentonite for civil engineering and underground construction projects. The company provides sodium bentonite materials suitable for slurry preparation in bore pile drilling, diaphragm wall systems, and deep foundation applications.

Basekim construction grade bentonite can be used in:

• Pile foundation drilling
• Diaphragm wall construction
• Tunnel and TBM operations
• Waterproofing systems
• Soil stabilization projects

Depending on project requirements, different slurry performance and viscosity specifications can be supplied for geotechnical and construction applications.
