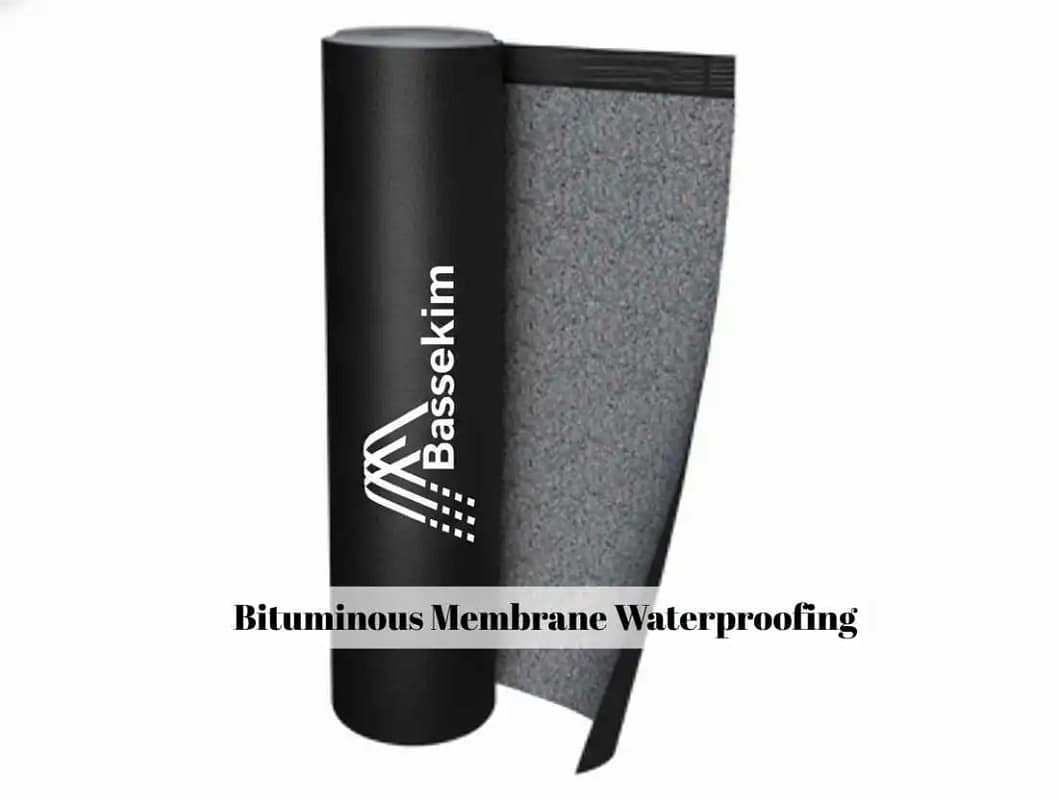

Bituminous Membrane Waterproofing – Composition, Applications & Technical Insights

Bituminous Membrane Waterproofing are among the most reliable materials used for protecting structures against water infiltration and long-term moisture damage. These membranes, composed primarily of bitumen modified with high-performance polymers, create a flexible yet durable barrier that can withstand hydrostatic pressure, temperature fluctuations, and mechanical stress.

Over the years, advanced manufacturing standards have led to membranes with improved elasticity, tensile strength, and chemical resistance — making them suitable for both industrial and civil construction projects.

1. Composition and Structure

A Bituminous Membrane Waterproofing is a multilayered composite system engineered to provide long-term waterproofing integrity. The typical structure includes:

• Modified Bitumen Compound: A blend of refined bitumen and polymer modifiers such as APP (Atactic Polypropylene) or SBS (Styrene-Butadiene-Styrene).

  • APP membranes offer superior UV and heat resistance.

  • SBS membranes provide exceptional flexibility at low temperatures.

• Reinforcement Layer: Polyester or fiberglass mat that enhances dimensional stability and tear resistance.

• Surface Finish: Mineral slate, aluminum foil, or sanded finish for protection against UV and mechanical wear.

• Lower Surface: Polyethylene film or self-adhesive coating for easier application and improved adhesion.

Modern production lines, such as those operated in Turkey, ensure consistent mixing, precise thickness control, and optimal polymer dispersion for uniform performance across rolls.

2. Working Mechanism

The membrane acts as a continuous, impermeable shield. Once applied to the substrate — either by torch-on fusion, cold adhesive, or self-adhesive methods — the layers form a cohesive waterproofing system. The viscoelastic nature of modified bitumen allows it to accommodate minor structural movements without cracking or losing adhesion.

3. Applications

Bituminous Membrane Waterproofing are widely used in both above- and below-grade waterproofing systems. Typical areas include:

• Flat and sloped roofs, terraces, and balconies

• Basements, foundations, and retaining walls

• Bridges, tunnels, underpasses, and parking decks

• Water tanks, reservoirs, and wastewater treatment plants

• Industrial floors and wet areas such as bathrooms and kitchens

Their versatility allows seamless integration into complex architectural and civil engineering designs.

4. Technical Advantages

• Excellent Water Impermeability: Total resistance to standing or pressurized water.

• High Dimensional Stability: Reinforced polyester ensures consistent thickness and elongation.

• Superior Aging Resistance: APP membranes resist oxidation and ultraviolet degradation even under extreme climates.

• Flexibility in Cold Temperatures: SBS modification prevents brittleness and cracking.

• Chemical Resistance: Inert against mild acids, alkalis, and salts.

• Ease of Application: Compatible with torch-on, self-adhesive, and cold bonding techniques.

• Long Service Life: With proper installation, membranes can perform effectively for over 20 years with minimal maintenance.

These features make it an ideal choice for large-scale infrastructure and export-oriented projects where durability and reliability are essential.

5. Manufacturing Quality

Bituminous membranes manufactured under controlled conditions adhere to international standards such as EN 13707, ASTM D5147, and ISO 9001:2015.
Advanced plants employ automatic dosing, continuous mixing, and online monitoring systems to achieve perfect polymer dispersion and thermal stability — resulting in a homogeneous membrane structure.
This precision-driven approach ensures consistent adhesion strength, elongation, and thermal resistance across every batch, a factor that distinguishes high-quality manufacturers based in Turkey in the global market.

6. Installation & Performance Notes

Proper surface preparation is critical: substrates must be clean, dry, and free from dust or loose particles. Overlaps between sheets are typically 8–10 cm, sealed either by torch fusion or self-adhesive bonding.
For exposed roofing, mineral-finished membranes are preferred due to their UV protection, while aluminum-foil-faced variants are used in thermal insulation systems.

7. Environmental and Safety Considerations

Modern Bituminous Membrane are asbestos-free, low in volatile organic compounds (VOC), and can be recycled through re-melting. When installed correctly, they do not release harmful emissions or leach chemicals into the environment. Their thermal stability and low permeability contribute to the overall energy efficiency of a building envelope.

8. Specification Table

Conclusion

Bituminous Membrane continue to be one of the most technically mature and trusted waterproofing systems worldwide. With innovations in polymer chemistry, automated production, and quality control, today’s membranes offer exceptional performance across diverse climates and structural conditions.
Factories in Turkey, equipped with advanced extrusion and lamination technology, now produce membranes that meet the highest European and ASTM specifications — delivering the strength, stability, and endurance demanded by modern infrastructure.
