What Is Drilling Mud and How Does It Make Drilling Possible Beneath the Earth?

The ground beneath our feet appears solid and quiet.
Yet just a few kilometers below the surface, the earth is under constant pressure, heat, and geological stress.

Drilling means entering this hidden environment one where a single mistake can collapse a well, trigger uncontrolled fluid flow, or turn millions of dollars into buried steel.

So the real question is not simply how do we drill, but:

How can drilling penetrate the earth safely, without the earth pushing back?

The answer lies in control.
And at the center of that control system is something rarely noticed, yet absolutely essential: drilling mud, also known as drilling fluid.

Drilling Is a System, Not a Drill Bit

A drill bit alone cannot survive underground conditions.
Without support, it would overheat, seize, or destabilize the wellbore in minutes.

Modern drilling operations must control several variables at the same time:

• Subsurface pressure

• Temperature and friction

• Wellbore stability

• Removal of rock cuttings

These tasks are not handled by metal or machinery alone.
They are handled by a carefully engineered fluid system.

What Is Drilling Mud and Why Is It Essential?

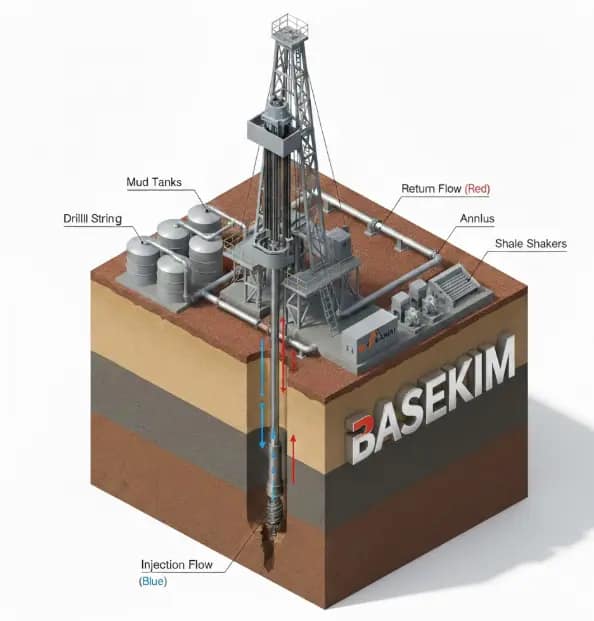

Drilling mud is a circulating fluid system pumped continuously through the drill string, out of the bit, and back to the surface through the annulus.

Its role is critical to drilling success:

• It balances formation pressure and prevents blowouts

• It cools and lubricates the drill bit

• It stabilizes the wellbore walls

• It transports rock cuttings to the surface

Without drilling mud, drilling does not simply slow down it fails violently.

What Is Drilling Mud Made Of?

Drilling mud is not a fixed formula.
Its composition changes constantly based on geology, depth, pressure, and temperature.

Most drilling fluid systems are built from several key components:

A base fluid such as water, oil, or synthetic fluid forms the foundation of the system.
Bentonite and other clay minerals provide viscosity and help form a protective filter cake along the wellbore.
Barite is added to increase fluid density and precisely control hydrostatic pressure.
Polymers and chemical additives fine-tune filtration, rheology, lubrication, and wellbore interaction.

Under stable geological conditions, this system is sufficient.
But the earth does not always cooperate.

When the Formation Becomes the Problem

Some formations are naturally unstable:

• Highly fractured

• Porous or cavernous

• Mechanically weak

In these zones, drilling mud may escape into the formation instead of returning to the surface.
This issue, known as lost circulation, is one of the most expensive and disruptive problems in drilling operations.

When lost circulation occurs, standard drilling mud components are no longer enough.

Why Specialized Additives Are Needed

To regain control, engineers introduce lost circulation materials (LCMs) additives designed to seal fractures and restore pressure balance.

These materials are not used routinely.
They are applied only when formation behavior demands intervention.

Among the most effective of these materials is gilsonite.

The Role of Gilsonite in Drilling Mud Systems

Gilsonite is a naturally occurring asphaltite with unique mechanical behavior.
Under downhole conditions, it becomes flexible and plastic rather than brittle.

When added to drilling mud, gilsonite:

• Seals fractures and micro-cracks

• Reduces fluid loss into the formation

• Helps re-establish pressure control

• Stabilizes problematic intervals

For this reason, gilsonite is not a base ingredient of drilling mud.
It is a problem solving additive, introduced only when standard systems fail.

Why Gilsonite Is Not Used in Every Well

Drilling is a discipline of balance, not excess.

Although gilsonite is highly effective, it:

• Increases overall fluid cost

• Requires precise concentration control

• Must be matched carefully to formation characteristics

Used without proper engineering justification, it can negatively affect fluid performance.
Its application is therefore a calculated decision not a routine choice.

Drilling Is a Negotiation with the Earth

Drilling is not brute force.
It is controlled interaction.

The earth applies pressure.
Engineers respond with fluid design.
When formations fracture, additives evolve.
When losses occur, specialized materials enter the system.

Drilling mud is the language of this negotiation.

Within that language, materials such as bentonite, barite, polymers and in critical situations, gilsonite each play a precise role.

What ultimately makes drilling possible is not a single tool, but the intelligent design and control of drilling fluids based on geological behavior.
